1/4” • 1/2” • 1” • 1 1/2” • 2” • 3”

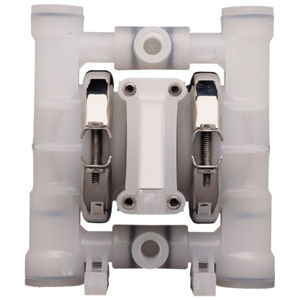

1/4” Wilden Double Diaphragm Plastic Pump

WETTED HOUSING: Polypropylene, Carbon-Filled Acetal, PVDF
ELASTOMER: Buna-N, Teflon PTFE, Wil-flex, Viton
SUCTION LIFT: 10’ dry
FLOW RATE: 4.8 GPM
MAX INLET PSI: 125 PSI

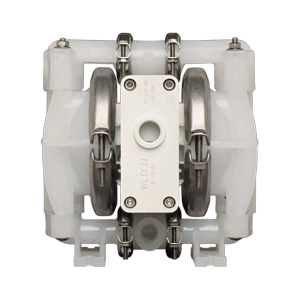

1/2” Wilden Double Diaphragm Plastic Pump

WETTED HOUSING: Polypropylene, Carbon-Filled Acetal, PVDF, Teflon PFA
ELASTOMER: Polyurethane, Buna-N, Teflon PTFE, Saniflex, Wil-flex, Viton
SUCTION LIFT: 13’ dry
FLOW RATE: 14.1 GPM
MAX INLET PSI: 125 PSI

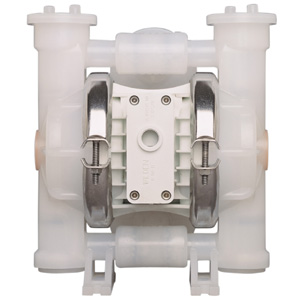

1” Wilden Double Diaphragm Plastic Pump

WETTED HOUSING: Polypropylene,  PVDF
ELASTOMER: Polyurethane, Neoprene, Buna-N, Nordel, Viton, Saniflex, Teftlon PTFE, Wil-Flex
SUCTION LIFT: 18’ dry
FLOW RATE: 30 GPM
MAX INLET PSI: 125 PSI

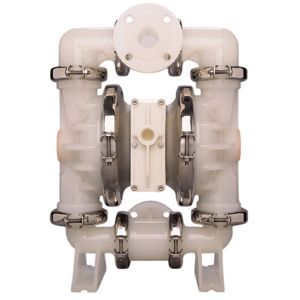

1 1/2” Wilden Double Diaphragm Plastic Pump

WETTED HOUSING: Polypropylene,  PVDF, Teflon PFA
ELASTOMER: Polyurethane, Neoprene, Buna-N, Nordel, Viton, Saniflex, Teftlon PTFE, Wil-Flex
SUCTION LIFT: 16’ dry
FLOW RATE: 86 GPM
MAX INLET PSI: 125 PSI

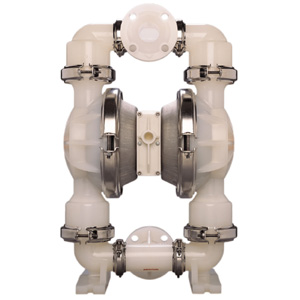

2” Wilden Double Diaphragm Plastic Pump

WETTED HOUSING: Polypropylene,  PVDF
ELASTOMER: Polyurethane, Neoprene, Buna-N, Nordel, Viton, Saniflex, Teftlon PTFE, Wil-Flex
SUCTION LIFT: 19’ dry
FLOW RATE: 156 GPM
MAX INLET PSI: 125 PSI

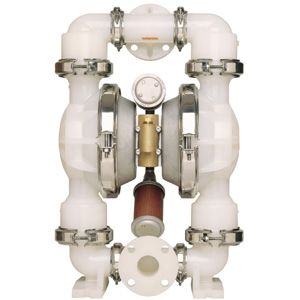

3” Wilden Double Diaphragm Plastic Pump

WETTED HOUSING: Polypropylene,  PVDF
ELASTOMER:   Teftlon PTFE
SUCTION LIFT: 10’ dry
FLOW RATE: 223 GPM
MAX INLET PSI: 125 PSI
