1/4” • 1/2” • 1” • 1 1/2” • 2” • 3” • 4”

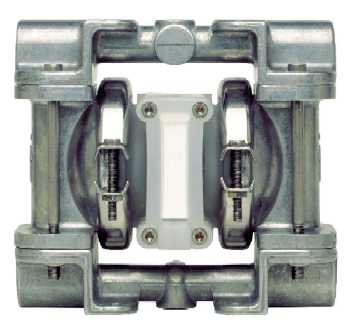

1/4” Wilden Double Diaphragm Metal Pump

WETTED HOUSING: Aluminum, Stainless Steel, Hastelloy C
ELASTOMER: Buna-N, Teflon PTFE, Wil-flex, Viton
SUCTION LIFT: 13’6” dry
FLOW RATE: 5.0 GPM
MAX INLET PSI: 125 PSI

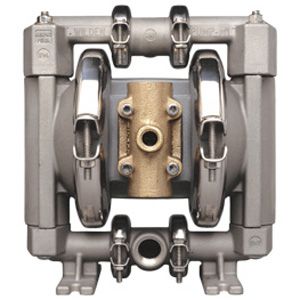

1/2” Wilden Double Diaphragm Metal Pump

WETTED HOUSING: Aluminum, Hastelloy C, 316 S.S.
ELASTOMER: Polyurethane, Buna-N, Teflon PTFE, Wil-flex, Viton, Saniflex
SUCTION LIFT: 5’ dry
FLOW RATE: 14.5 GPM
MAX INLET PSI: 125 PSI

1” Wilden Double Diaphragm Metal Pump

WETTED HOUSING: Aluminum, Hastelloy C, 316 S.S.
ELASTOMER: Polyurethane, Neoprene,  Buna-N, Nordel, Teflon PTFE,
                             Wil-flex, Viton, Saniflex
SUCTION LIFT: 17’ dry
FLOW RATE: 35 GPM
MAX INLET PSI: 125 PSI

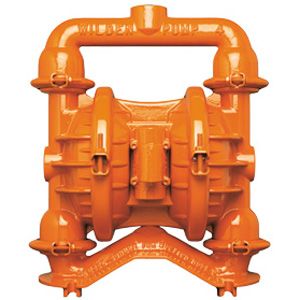

1 1/2” Wilden Double Diaphragm Metal Pump

WETTED HOUSING: Aluminum, Hastelloy C, 316 S.S., Cast Iron
ELASTOMER: Polyurethane, Neoprene,  Buna-N, Nordel, Teflon PTFE,
                             Wil-flex, Viton, Saniflex
SUCTION LIFT: 18’ dry
FLOW RATE: 81 GPM
MAX INLET PSI: 125 PSI

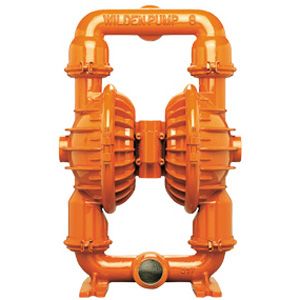

2” Wilden Double Diaphragm Metal Pump

WETTED HOUSING: Aluminum, Hastelloy C, 316 S.S., Cast Iron
ELASTOMER: Polyurethane, Neoprene,  Buna-N, Nordel, Teflon PTFE,
                             Wil-flex, Viton, Saniflex
SUCTION LIFT: 21’ dry
FLOW RATE: 163 GPM
MAX INLET PSI: 125 PSI

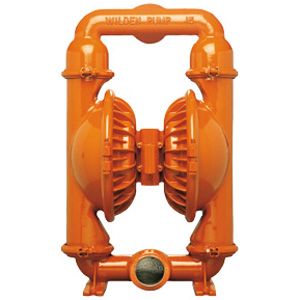

3” Wilden Double Diaphragm Metal Pump

WETTED HOUSING: Aluminum, Hastelloy C, 316 S.S., Cast Iron
ELASTOMER: Polyurethane, Neoprene,  Buna-N, Nordel, Teflon PTFE,
                             Wil-flex, Viton, Saniflex
SUCTION LIFT: 19’ dry
FLOW RATE: 232 GPM
MAX INLET PSI: 125 PSI

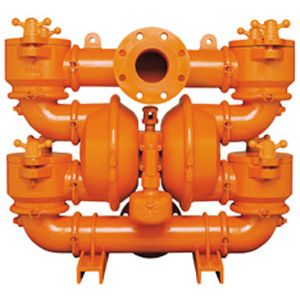

4” Wilden Double Diaphragm Metal Pump

WETTED HOUSING: Cast Iron
ELASTOMER: Polyurethane, Nordel, Viton, Saniflex, Teftlon PTFE, Wil-flex
SUCTION LIFT: 12’ dry
FLOW RATE: 275 GPM
MAX INLET PSI: 125 PSI
